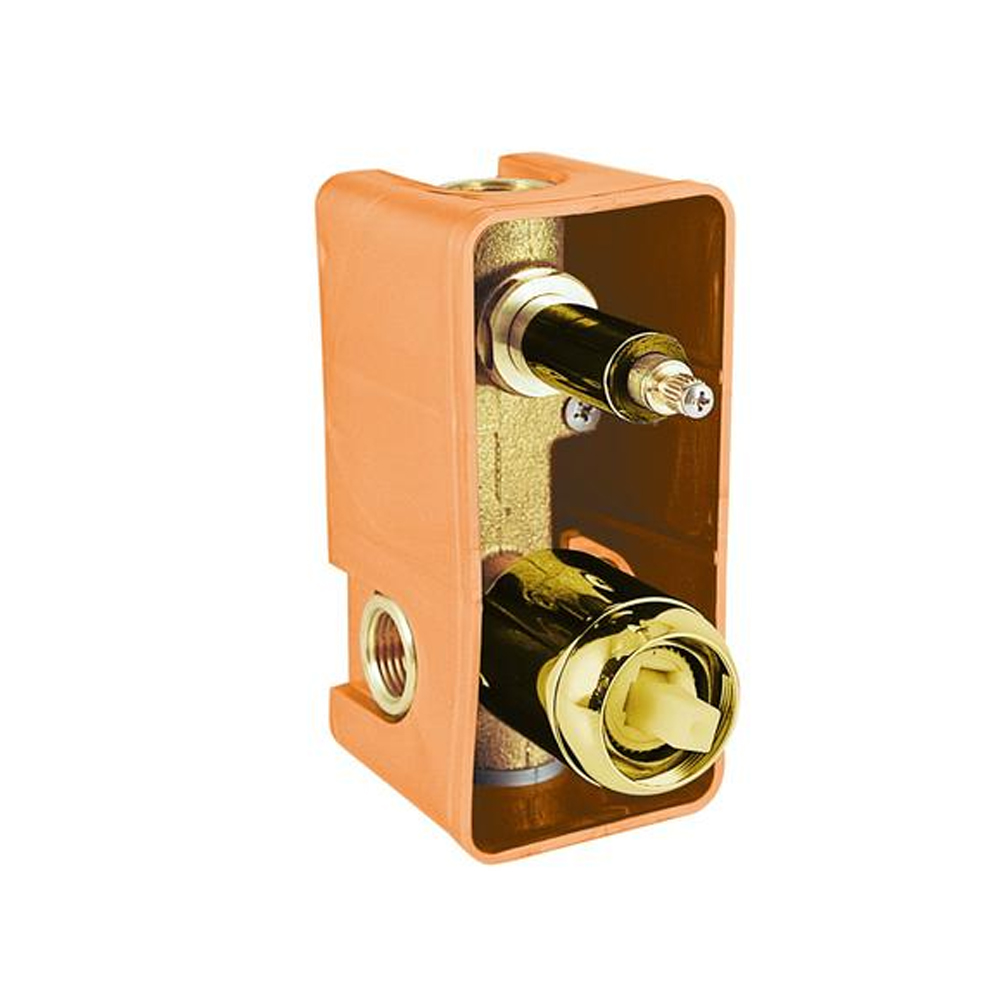

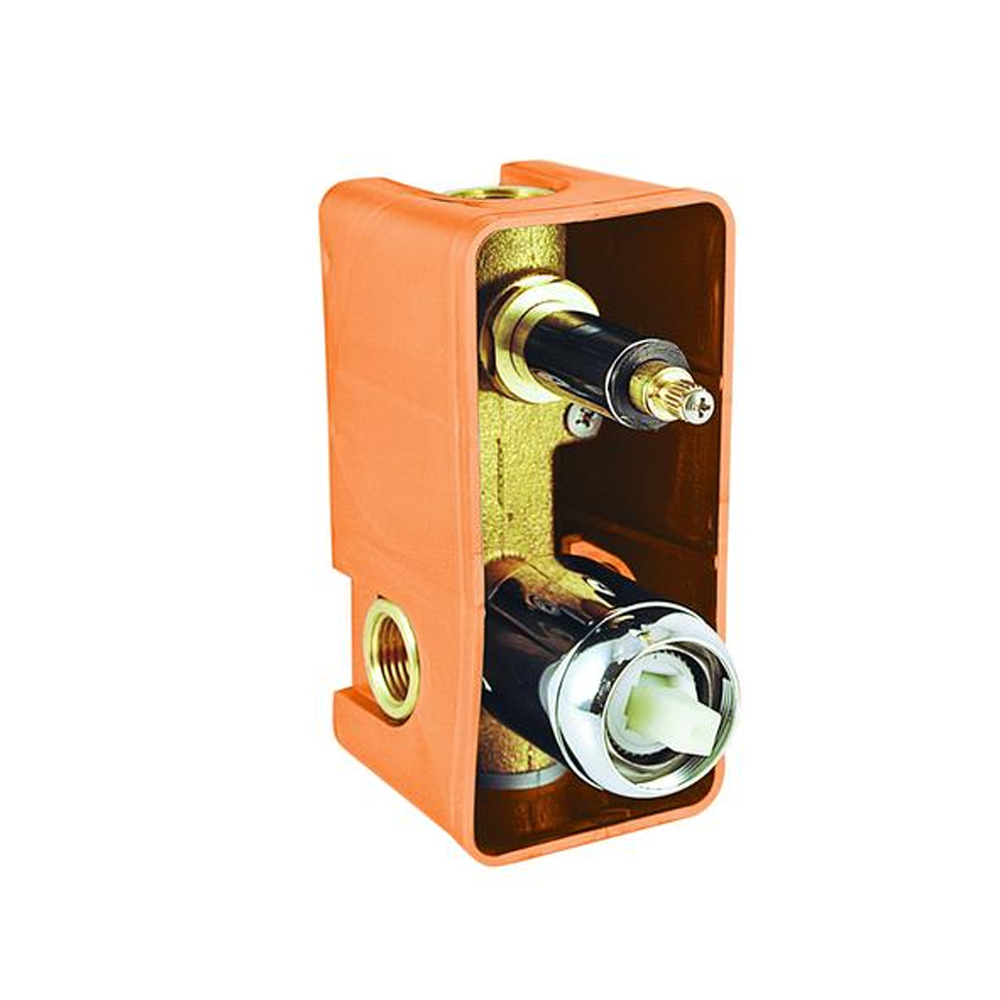

Universal Concealed Bath Mixer Ceramic Diverter
Product Name: Universal Concealed Bath Mixer Ceramic Diverter
Stock Code: 878DA
Stock Status: Stokta Var
Product Category: Armature
Technical Information
Product Standard TS EN 817 (Single Control)
Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years)
Color / Finish Yellow
Flow Rate 7.5 - 9 Lt / Min (3 Bar)
Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg
Installation Connection Type Built in Wall Recessed
Body Raw Material Brass
Max. Perform...
|
Technical Information |
| Product Standard TS EN 817 (Single Control) |
| Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) |
| Color / Finish Yellow |
| Flow Rate 7.5 - 9 Lt / Min (3 Bar) |
| Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg |
| Installation Connection Type Built in Wall Recessed |
| Body Raw Material Brass |
| Max. Performance Temperature 80°C |
| Suggested Performance Temperature 60°C |
| Max. Performance Pressure 10 Bar |
| Suggested Performance Pressure 3 Bar |
| Assembly Distance Of Built in Spout - Ground 550 mm - 650 mm |
| Shower Diverter On/Off System Ø22 Diverter Ceramic Cartridge |
| Suggested Assembly Distance Of Built in Body - Ground 1100 mm |
| Suggested From Ground To Wall Oulet Height For Overhead Shower2100 mm - 2200 mm |
