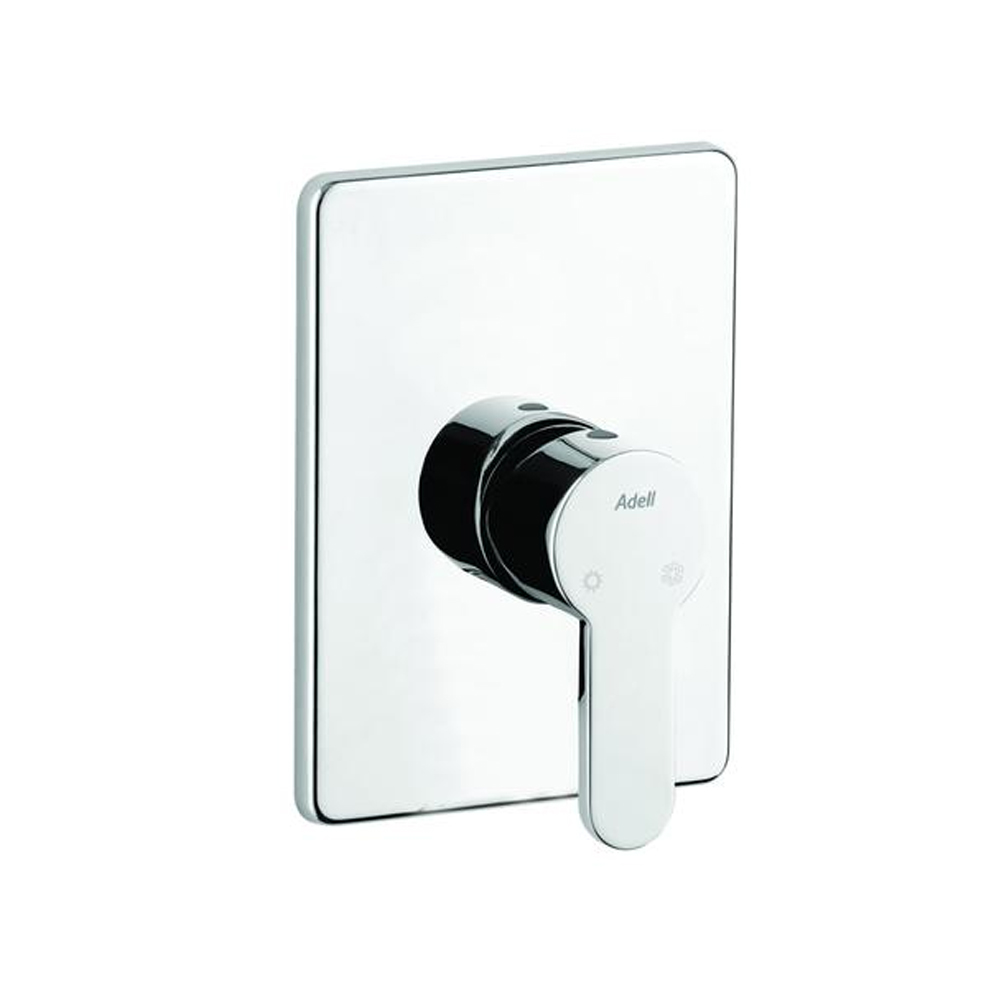

Lento Control Unit for Concealed Shower Mixer
Product Name: Lento Control Unit for Concealed Shower Mixer
Stock Code: S6A9C3
Stock Status: Stokta Var
Product Category: Armature
Technical Information
Product Standard TS EN 817 (Single Control)
Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years)
Color / Finish Chrome
Aearator Type M24X1 Male Threaded
Flow Rate 7.5 - 9 Lt / Min (3 Bar)
Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg
Installation Connection Type From The Wall
Body Raw Ma...
|
Technical Information |
| Product Standard TS EN 817 (Single Control) |
| Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) |
| Color / Finish Chrome |
| Aearator Type M24X1 Male Threaded |
| Flow Rate 7.5 - 9 Lt / Min (3 Bar) |
| Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg |
| Installation Connection Type From The Wall |
| Body Raw Material Brass |
| Dimension Of Wall Rosette 160 mm x 120 mm x 7.5 mm |
| Number Of Control Handle Single |
| Material Of Control Handle Metal |
| Spout Length 136 mm |
| Assembly Distance Of Built in Spout - Ground 550 mm - 650 mm |
| Suggested Assembly Distance Of Built in Body - Ground 1100 mm |
| Suggested From Ground To Wall Oulet Height For Overhead Shower2100 mm - 2200 mm |
